Delivering Excellence in Every Crimp

High-Efficiency Crimp Presses
in Clinton Township, MI

Diamond Die’s crimp presses offer a range of benefits that make your job easier and more efficient. Our machines provide excellent accessibility, ensuring effortless wire feeding even for hard-to-reach and difficult-to-work areas. When it comes to crimp integrity, our machines deliver consistent, high-quality connections time and time again.

Our crimp presses are known for their durability, providing long-lasting, low-maintenance performance for years. The adaptability of our machines, with interchangeable holders for all types of wire harnessing equipment, also allows for versatility in your production line and accommodates your future needs. Contact Diamond Die for a quote and start experiencing the advantages of our crimp press technology.

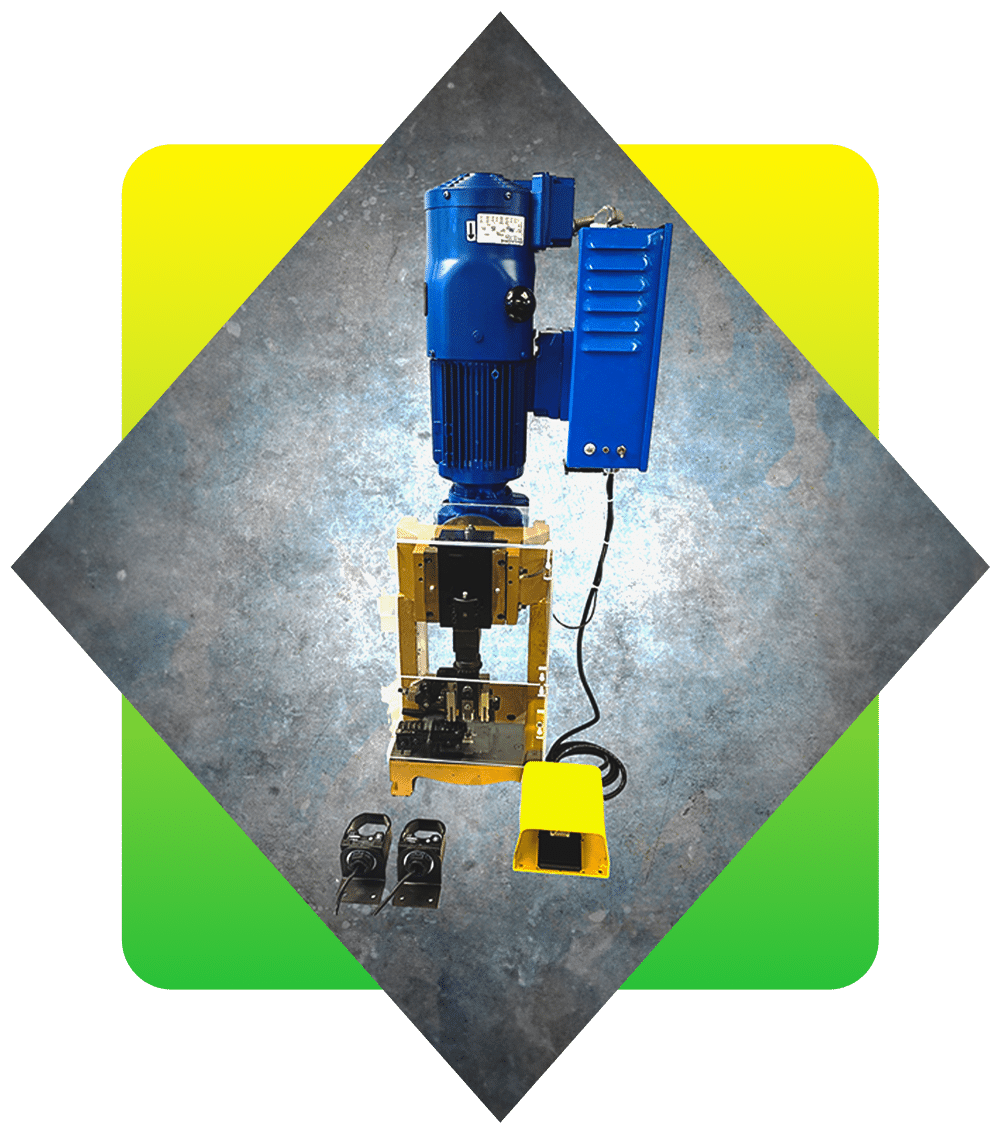

X6 Crimp Press

The Model X6 Crimp Press boasts a 6-ton terminating capacity, making it a versatile choice for various wire crimping applicators. Its interchangeable holders offer flexibility and enable efficient handling of all wire crimping tasks. The X6 has a wide-open benchtop frame, ensuring applicator clearance and accommodating Left-to-Right, Right-to-Left, and End-to-End feed applications.

This model features a 1.50” (38.1mm) stroke, precision-calibrated shut height adjustment in 0.001″ (0.025mm) increments and is available in 208V, 220V, or 440V 3-phase voltage options. Its design prioritizes safety with power lockout and disconnect guarding options. Manufactured for die accessibility, crimp integrity, and durability, the X6 promises high-speed performance and economical maintenance.

X22 Crimp Press

The Model X22 Crimp Press offers a powerful 22-ton terminating capacity, making it the ideal choice for heavy-duty, high-volume production lines. It features interchangeable holders compatible with a diverse range of wire crimping applicators and exhibits a 2.00” (50.8mm) stroke. The wide-open benchtop frame provides ample clearance for applicators, accepting Left-to-Right, Right-to-Left, and End-to-End feed applications.

Precision is ensured with shut height calibration, adjusting in 0.001″ (0.025mm) increments. The X22 is available in 208V, 220V, or 440V 3-phase voltage options and provides enhanced safety through power lockout and disconnect guarding options.

Discover the Advantages of Diamond Die's X6 and X22 Crimp Presses

Invest in your business’s future by ensuring the highest production quality and efficiency level with Diamond Die’s crimp presses. Explore the power of the X6 and X22 today!
